NCLT70 4.5mm Medium Material

Product Features：
Applicable to ordinary low-carbon steel, galvanized sheet, medium plate, stainless steel and other materials；
Standard support,feeding and folding device,conwenient for feeding coils into the leveling feeder;
Working rollers are made of bearing steel hardened and chrome-plated, with a hardness of HRC60±2；
A full set of Siemens servo system is used to ensure high-precision feeding；
Humanized design, with safety protection system, is easy for personnel to operate；
This model adopts modular design, and corresponding configuration can be purchased according to actual needs.

Overview
Recommended Products

NCLT70 4.5mm Medium Material
Technical Parameter
	Model	NCLT70-400	NCLT70-600	NCLT70-800	NCLT70-1000	NCLT70-1300
Decoiler parameter	Coil I.D	508/610
	Max Coil 0.D	1400
	Max Coil weight	3000 5000 8000
Straightener Parameter	Thickness of Material	0.6-4.5
	width of Material	70-400	70-600	70-800	70-1000	70-1300
	Max Yield Point Stress	490
	Max Tensile strength	780
	The Optimal Thickness Range	1.0-2.5
	Straightening Roller Diameter	70
	Straightening Roller	Up4/Down3
Feeder Parameter	Feeding Speed	16-24
	Max Feeding Length	0-9999.99
	Feeding Level	(1200土100)Accordingto Customer's Requirements
System Parameter	Decoiling motor	1.5	2.2		3.7
	Servo motor	4.4 5.5 7.5
	Power Supply	(380V/50HZ) 3-Phrase 380V/50Hz or as customer request
	Air supply	0.4-0.6 MPa,0.8³/min

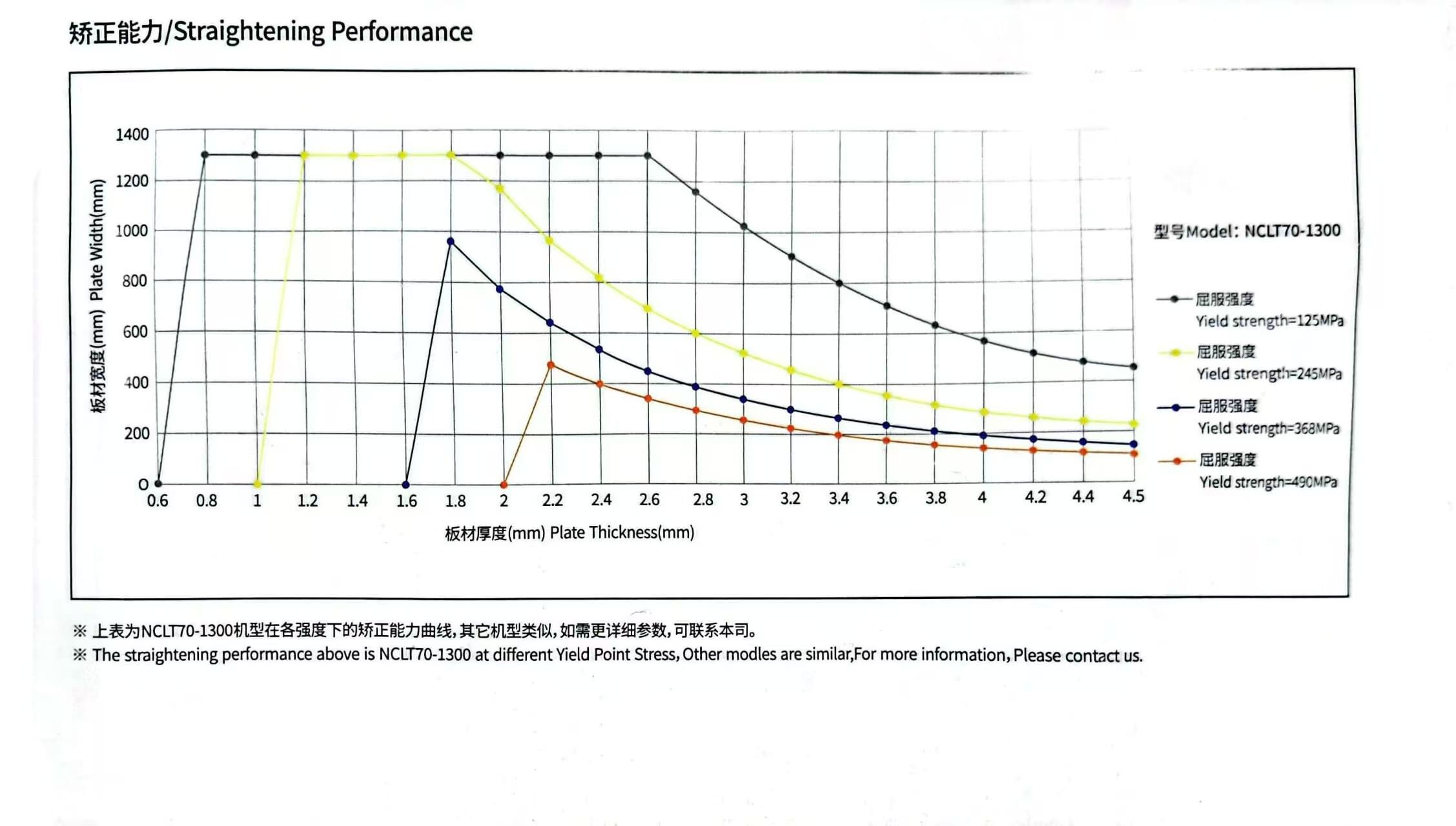

※In the table above, The Optimal Thickness Range is caculated at Yield Point Stress 245N/mm²(tensile strength 392N/mm²)

Standard accessory:
Automatic/manual switching
Material arc photoelectric control system
Air pressure disc brake device
Feeding line height electric adjustment
End material photoelectric detection
Touch screen
Hydraulic expansion and contraction
Non-Powered pressing arm
Material support arm
Limiting arm
Material feed folding device
Leveling inlet guide device
Manual adjustment of Adjustment date
Dial display of Adjustment date
Specified paint color

0ption accessory:
Loading trolley
Powered pressing arm
Electric limit arm
Automatic oil feeder
Hydraulic shear
Liftable machine head
Electric adjustment of Adjustment date
Adjustment date display
Adjustment date storage and call
Leveling outlet guide device
