40 CNC series

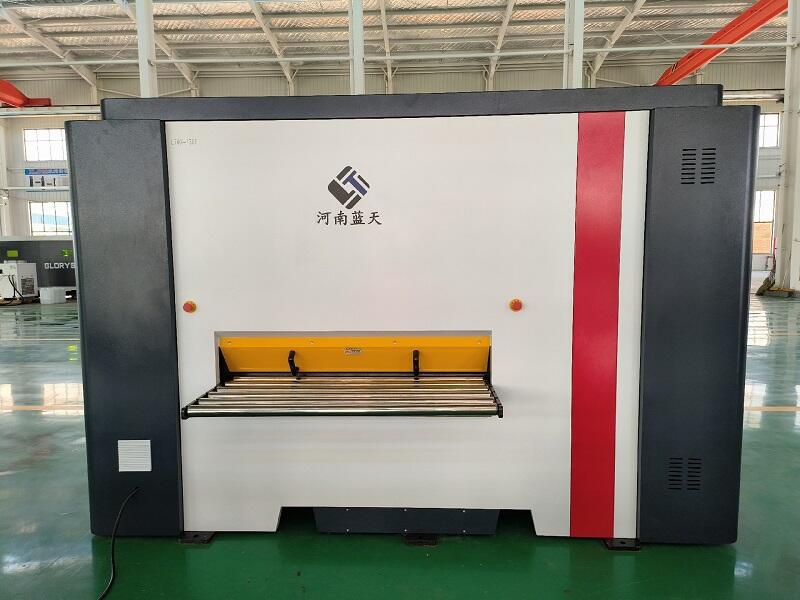

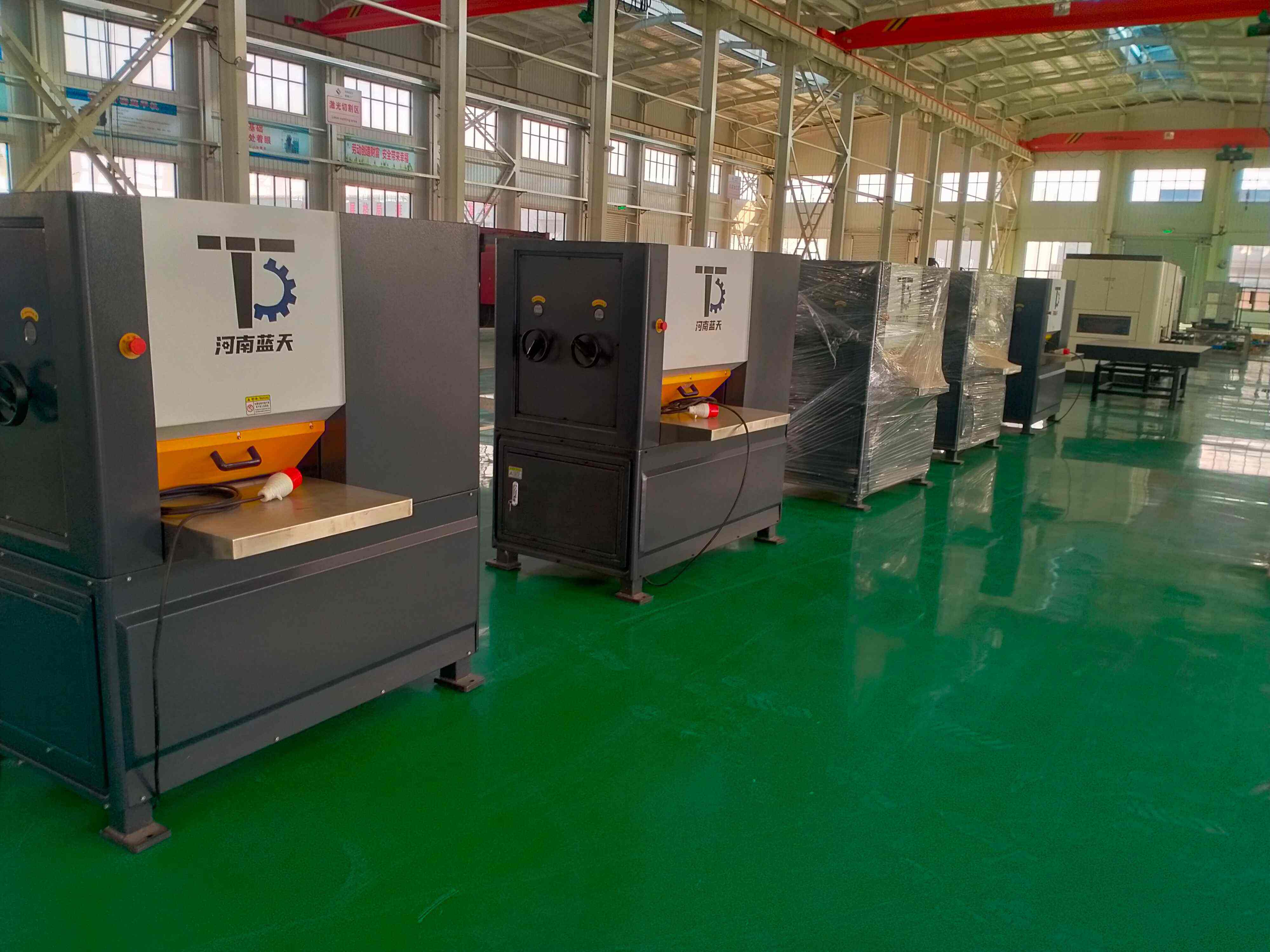

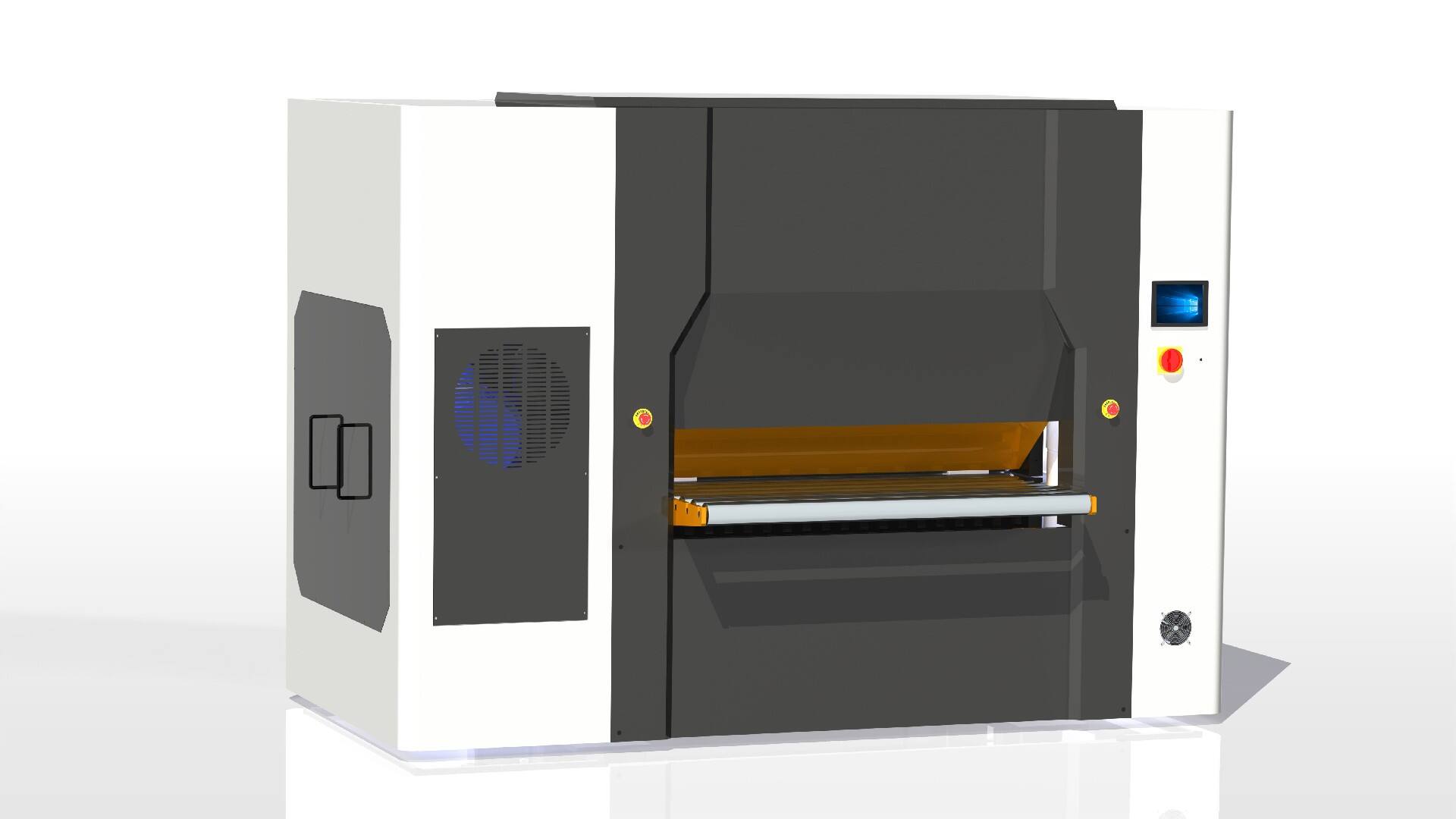

CNC four-fold precision straightening machine is designed for products with high requirements for flatness.By eliminating internal stress, the flatness of parts can be restored and improved, with an accuracy of up to the micrometer level, providing qualified parts for the next step such as bending/welding.The bar type plate straightener is designed to use a large number of straightening rolls arranged in dense groups with very small spacing between them. The material is passed the upper and lower rows of staggeredly arranged straightening rolls, which repeatedly bend the material until it approaches zero value, eventually straightening it.
- Overview
- Recommended Products
Specifications:
CNC four-fold precision straightening machine for thin plates | ||
Model of equipment |
XLJ80-1600Z |
XLJ100-1600Z |
Flattening width |
1600mm |
1600mm |
Roller diameter |
80mm |
100mm |
Maximum plate thickness |
8.0mm |
12.mm |
Nominal plate thickness |
1.5-8.0mm |
3.0-12.0mm |
Number of rolls |
Standard type 19-piece:Structure 9/bottom 10 |
|
Shortest workpiece |
10*150mm |
10*180mm |
Auxiliary roller |
Seven groups each above and below |
|
Leveling adjustment method |
Four-point touch screen servo motor adjustment |
|
leveling speed |
0-12m/min |
|
Voltage |
AC three-phase 380VAC 50HZ(Customizable) |
|
Applications:
Products suitable for various metal materials such as iron, aluminum, copper, stainless steel, mesh board, laser cutting board, alloy board, etc.Serving the auto parts, aviation, high-speed rail, chain plate, saw blade, precision stamping, sheet metal and furniture electrical manufacturing industries.
Advantages:
The staggered support rollers ensure that the leveling stick is supported to the best degree possible when subjected to force, preventing bending deformation and strengthening the rigidity the entire device. They form a four-layer leveling stick structure with the leveling stick, ensuring stable, efficient, and high-quality leveling results.
Electric adjustment: Just enter the parameters on the touch screen to automatically adjust the leveling gap, convenient and fast.
