NCLT120 15.0mm Super Thick Material

Features：
Applicable to ordinary low-carbon steel, galvanized sheet, extra-thick sheet, stainless steel and other materials；
The working roller is made of bearing steel hardened and chrome-plated, with a hardness of HRC60±2；
The electric adjustment of the correction amount replaces the manual handle adjustment method,making the operation easier;
The full set of Siemens servo system is adopted to ensure high-precision feeding；
The humanized design, combined with the safety protection system, is easy for personnel to operate；
Specially designed for extra-thick sheet coils,easy feeding,strong head structure,and excellent leveling effect;

Overview
Recommended Products

NCLT120 15.0mm Super Thick Material
Technical Parameter
	Model	NCLT120-400	NCLT120-600	NCLT120-800	NCLT120-1000
Decoiler parameter	Coil I.D	508/610
	Max Coil 0.D	1600
	Max Coil weight	8000 12000
Straightener Parameter	Thickness of Material	1.5-15.0
	width of Material	100-400	100-600	100-800	100-1000
	Max Yield Point Stress	550
	Max Tensile strength	880
	The Optimal Thickness Range	1.8-6.0
	Straightening Roller Diameter	120
	Straightening Roller	Up4/Down3
Feeder Parameter	Feeding Speed	16
	Max Feeding Length	0-9999.99
	Feeding Level	(1200土100)According to Customer's Requirements
System Parameter	Decoiling motor	5.5		7.5
	Servo motor	15		22
	Power Supply	(380V/50HZ)3-Phrase 380V/50Hz or as customer request
	Air supply	0.4-0.6 MPa,1.6³/min

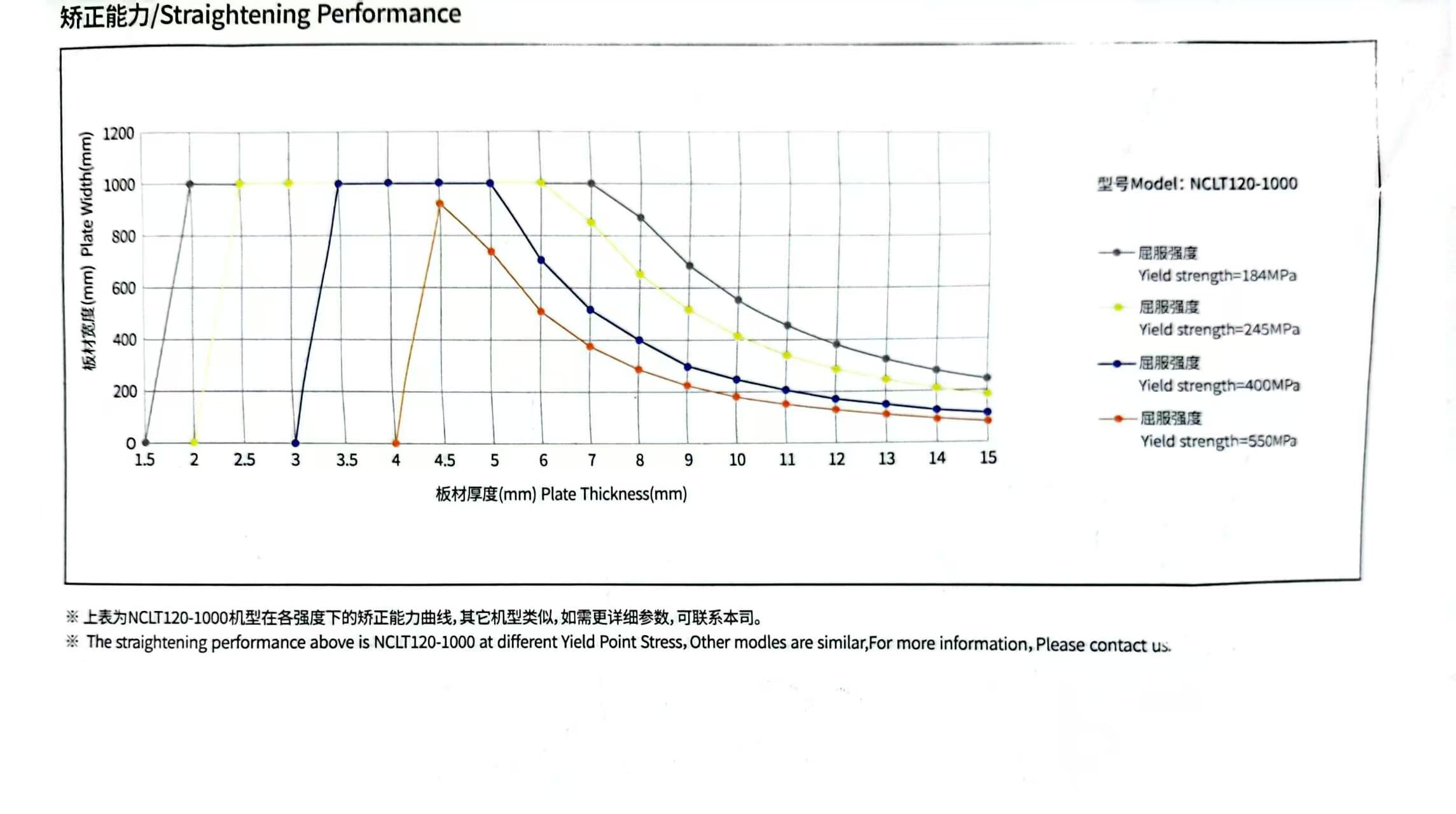

※In the table above, The Optimal Thickness Range is caculated at Yield Point Stress 245N/mm²(tensile strength 392N/mm²)

Standard accessory:
Automatic/manual switching
Material arc photoelectric control system
Air pressure disc brake device
Electric adjustment of feeding line height
Photoelectric detection of final material
Touch screen
Hydraulic expansion and contraction
Drum type loading trolley
Powered pressing arm
Material supporting arm
Dual electric limit arm
Material feeding folding device
Material pressing head device
Leveling inlet guide device
Leveling outlet guide device
Electric adjustment of Adjustment date
Adjustment date numerical display
Adjustment date numerical storage and call
Specified paint color

0ption accessory:
Automatic oiling machine
Hydraulic shear
Head can be lifited
Working rollers up 5 down 4
