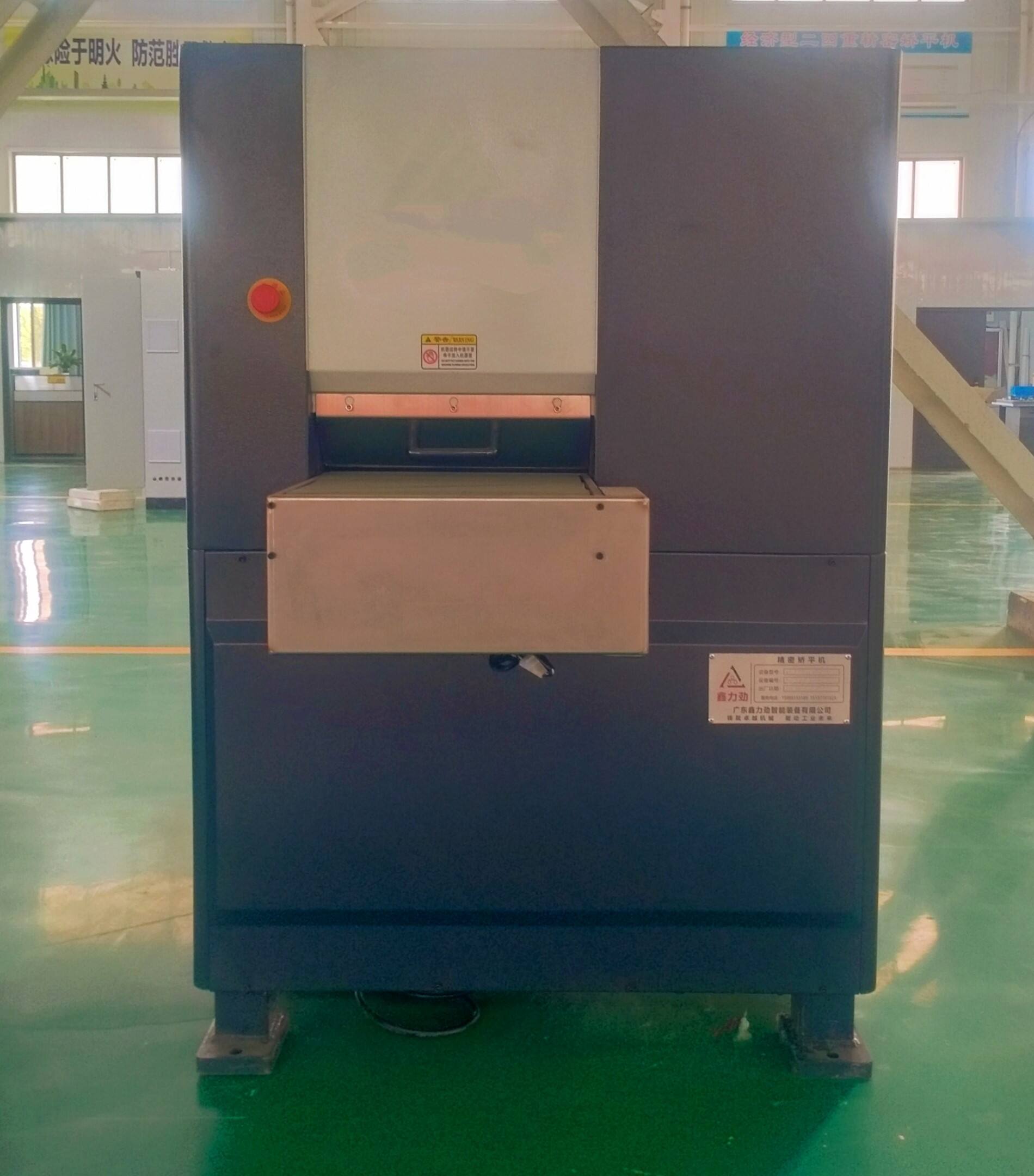

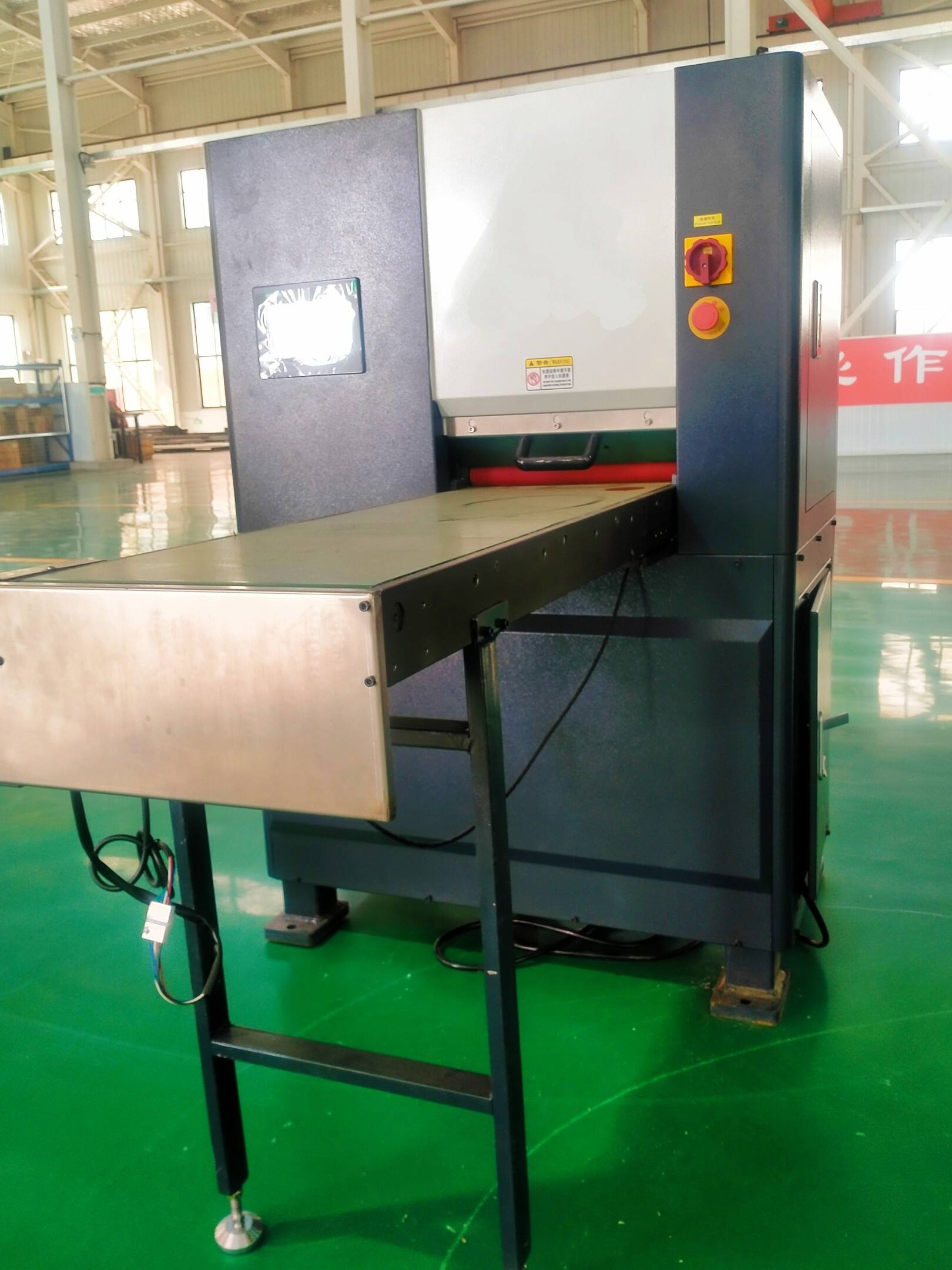

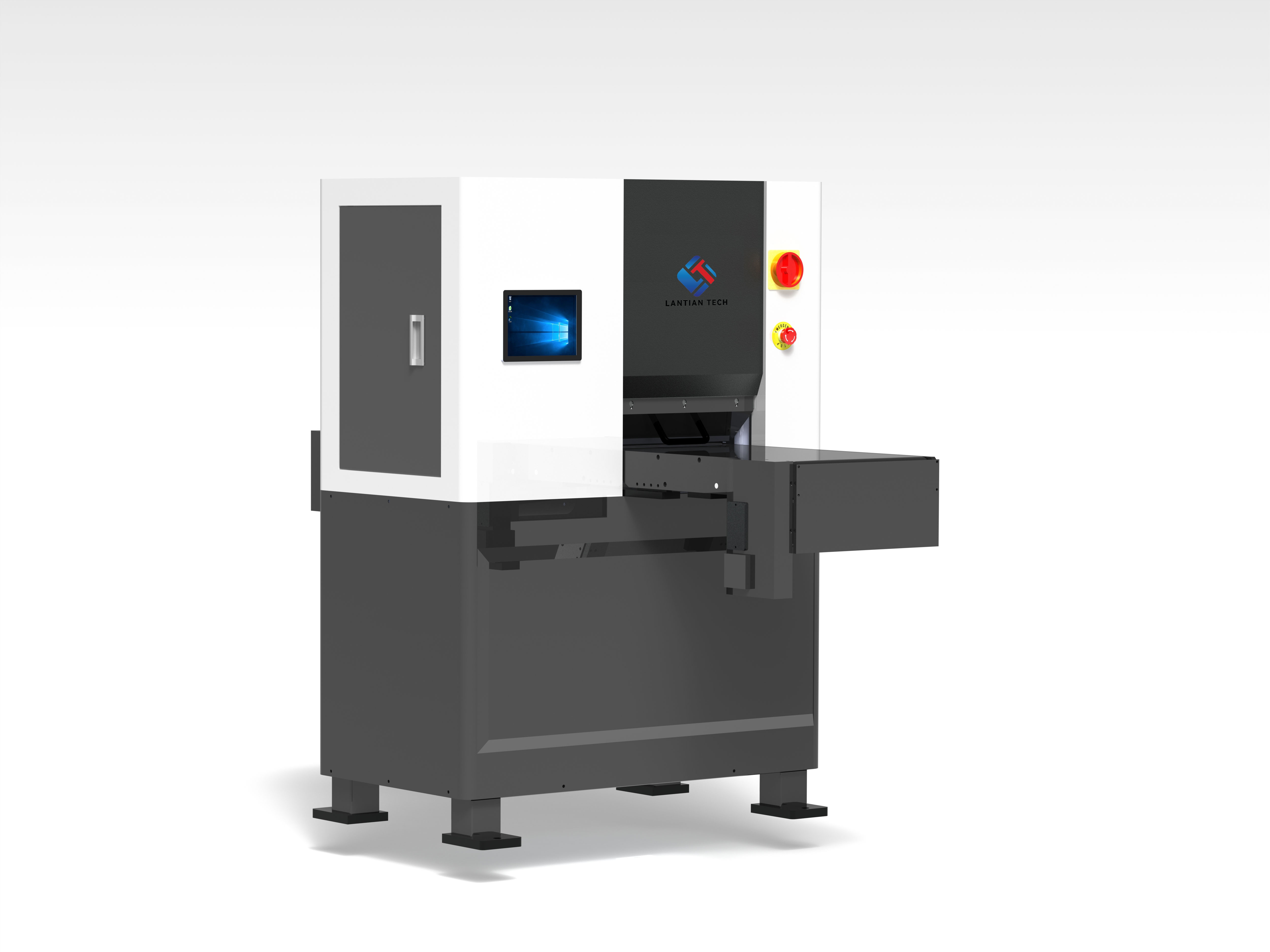

20 series
High precision correction:It can achieve extremely precise flatness correction of the plate, ensuring that the plate meets the high standard of flatness requirements.
Efficient processing:High work efficiency, able to handle a large number of plates in a short period of time.
High degree of automation:It is usually equipped with advanced automation control system, which can realize automatic feeding, correction and discharging, reduce manual intervention, and improve production efficiency and stability.
- Overview
- Recommended Products
Specifications:
Series |
Thin plate series |
Model of equipment |
LTJP-20 |
Roller diameter(mm) |
Φ20 |
Width(mm) |
200-800 |
Number of rolls |
23 |
Nominal plate thickness(mm) |
0.2-1 |
Maximum plate thickness(mm) |
1.5 |
Shortest workpiece(mm) |
40 |
Leveling speed |
0-12m/min |
Applications:
It can handle plates of various materials, thicknesses and sizes, and has strong versatility.
Advantages:
1. Good stability:Maintain stable correction effects during long-term operation, reducing errors and deviations.
2. Low-damage treatment:The surface and internal structure of the plate are slightly damaged during the correction process, ensuring the quality of the plate.
3. Easy to operate and maintain:With a humanized operation interface and a simple maintenance structure, it reduces the difficulty of operation for operators and the maintenance cost of equipment.
4. Energy conservation and environmental protection:Advanced energy-saving technology is adopted to reduce energy consumption and meet environmental protection requirements.
