NCLT70P 3.0mm High Strength Material

Features：
Suitable for medium and high strength plates, stainless steel and other materials;
The working roller is made of bearing steel hardened and chrome plated, with a hardness of HRC60±2;
The electric adjustment of the correction amount replaces the manual handle adjustment method, making the operation easier;
A full set of Siemens servo systems are used to ensure high-precision feeding;
Humanized design, combined with a safety protection system, is convenient for personnel to operate;
The frame-type head structure designed specifically for high-strength plates greatly enhances the rigidity of the upper and lower rollers to ensure that the straightening meets the standards;
This model is particularly suitable for materials with a yield strength of 613N/mm² (corresponding to a tensile strength of 980N/mm²) and below 0.8~3.0mm;

Overview
Recommended Products

NCLT70P 3.0mm High Strength Material
Technical Parameter
	Model	NCLT70P-600	NCLT70P-800	NCLT70P-1000	NCLT70P-1300	NCLT70P-1600
Decoiler parameter	Coil I.D	508/610
	Max Coil 0.D	1500
	Max Coil weight	5000 8000 12000 15000
Straightener Parameter	Thickness of Material	0.6-6.0
	width of Material	70-600	70-800	70-1000	70-1300	70-1600
	Max Yield Point Stress	613
	Max Tensile strength	980
	The Optimal Thickness Range	0.8-3.0
	Straightening Roller Diameter	70
	Straightening Roller	Up5/Down4
Feeder Parameter	Feeding Speed	16
	Max Feeding Length	0-9999.99
	Feeding Level	(1200土100)According to Customer's Requirements
System Parameter	Decoiling motor	2.2	3.7		7.5	11
	Servo motor	7.5 11
	Power Supply	(380V/50HZ)3-Phrase 380V/50Hz or as customer request
	Air supply	0.4-0.6 MPa,1.2³/min

※In the table above, The Optimal Thickness Range is caculated at Yield Point Stress 245N/mm²(tensile strength 392N/mm²)

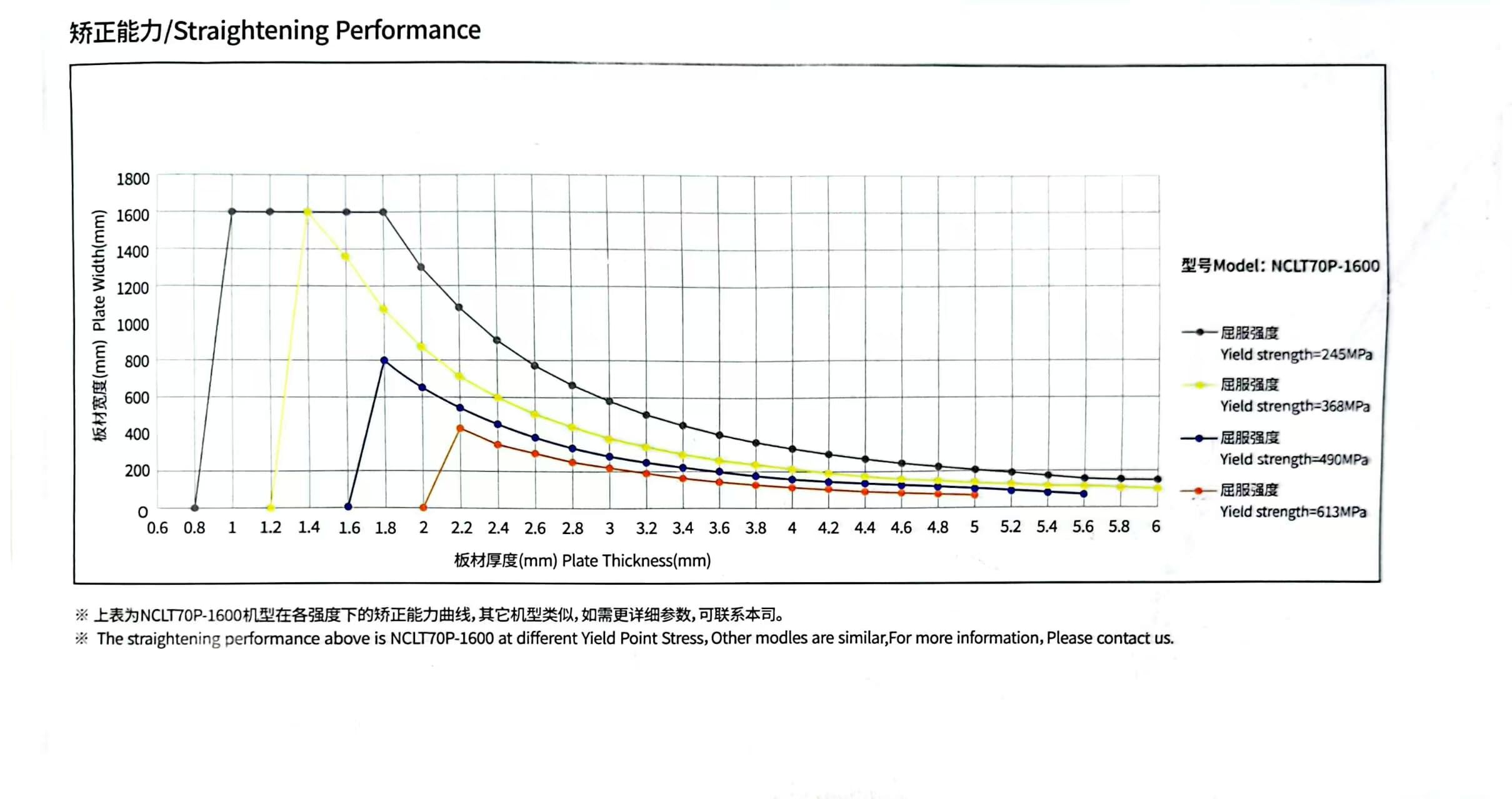

NCLT70P 3.0mm High Strength Material.jpg

Standard accessory:
Automatic/manual switching
Material arc photoelectric control system
Air pressure disc brake device
Feeding line height electric adjustment
End material photoelectric detection
Touch screen
Hydraulic expansion and contraction
Powered pressing arm
Material supporting arm
Limiting arm
Feeding and folding device
Leveling inlet guide device
Adjustment date electric adjustment
Adjustment date numerical display
Adjustment date numerical storage and call
Specified paint color

0ption accessory:
Loading trolley
Electric limit arm
Automatic oil feeder
Hydraulic shear
Head can be lifited
Working rollers up 6 down 5
Leveling outlet guide device
